Oral and maxillofacial surgical plates



The sum of plates and screws for fixing the jaw, face and skull bones. The implants can be fixed with screws to the bone surface, thereby holding the bones together. For fixing broken bones or aesthetic corrections.

Oral and maxillofacial surgical plates



The sum of plates and screws for fixing the jaw, face and skull bones. The implants can be fixed with screws to the bone surface, thereby holding the bones together. For fixing broken bones or aesthetic corrections.

Oral and maxillofacial plates
Quality raw materials

Quality raw materials

Our products are made of as highest quality as possible, high biocompatible materials.

Advanced technology

Advanced technology

Our products are CE marked and the production process is under strict quality management system.

Wide range of sizes

Wide range of sizes

Whether it is diameter or length, the BIONIKA offers everything you need.

Long-term guarantee

Long-term guarantee

All BIONIKA products provide a long-term, replacement and money back guarantee.

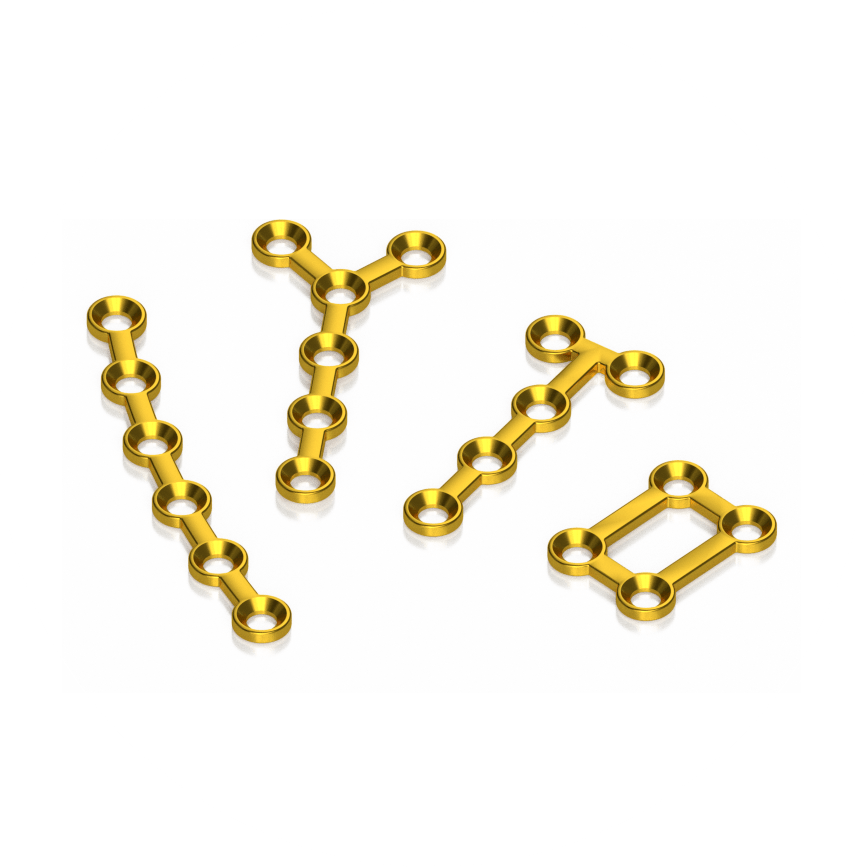

HPC- Maxillofacial surgical micro bone plates

HPC – Maxillofacial Micro Plates

Maxillofacial surgical micro plate for fixing ostheosynthesis, skull injuries. The system consists of : maxillofacial micro bone plate I-form, L-form; H-form; T-form; Y-form; Grid-form; C-form; maxillofacial micro bone screws, maxillofacial micro bone drills. The screws can be made with cross recessed, torx or with a hex of 1mm of quadrilateral key apertures on request.

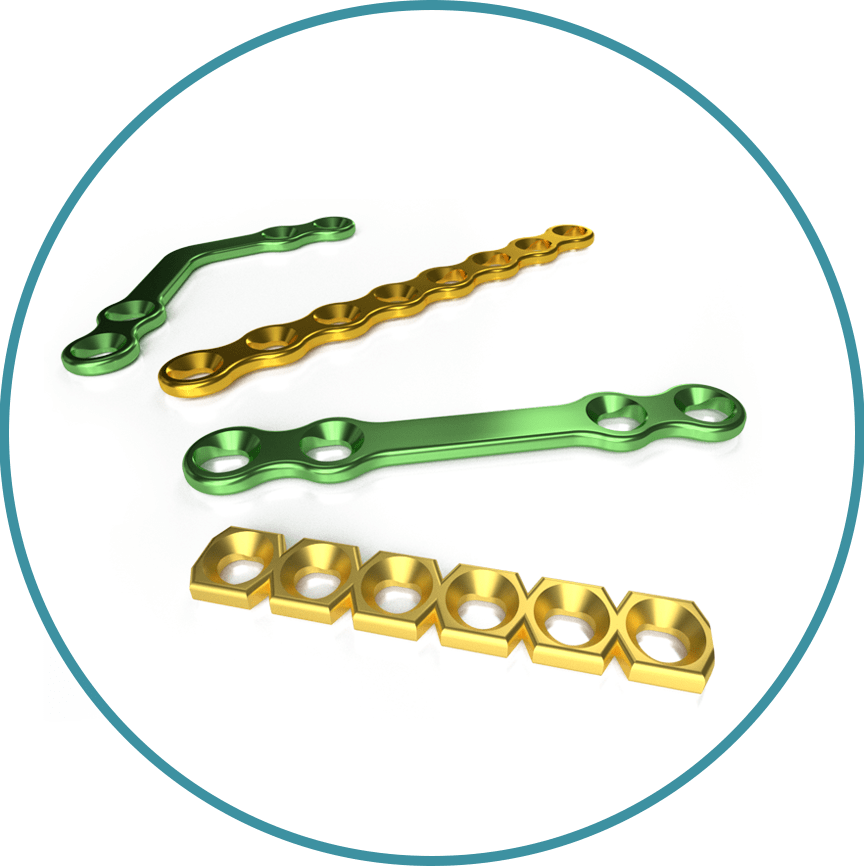

HPD Jaw surgical plates-oral surgical plates

HPD – Jaw surgical plates

This is such a system, which is inserted into the lower or upper jaw, possibly into the face bone, during oral surgical intervention. Main forms: I-form ● L-form ● jaw reconstructional mini bone plate ● jaw reconstructional maxi bone plate.

Screw: maxillofacial bone screw, in D1,5 mm, D2,0 mm, D2,3 mm, D2,7 mm sizes. The screws can be made with cross recessed, torx or with a hex of 1 mm of quadrilateral key apertures on request.

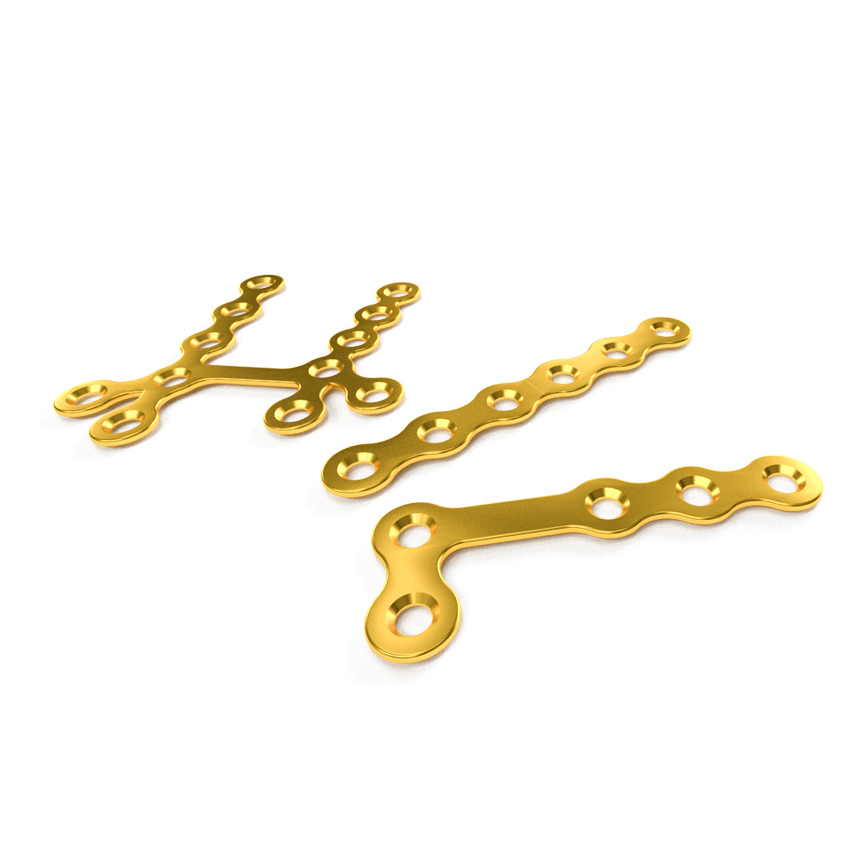

HPI Maxillofacial - mini bone plates

HPI – Maxillofacial Mini Plates

For fixing the jaw and face bones. The BIONIKA maxillofacial mini plates are available in multiple geometries and wide range of sizes. Main forms: I-form ● L-form ● H-form ● T-form ● Double T-form ● Y-form ● Mini nose bone plate ● C-form

Screws: maxillofacial mini bone screw in D1,52 mm; D2,0 mm and D2,3 mm sizes. The screws can be made with cross recessed, torx or with a hex of 1mm of quadrilateral key apertures on request.

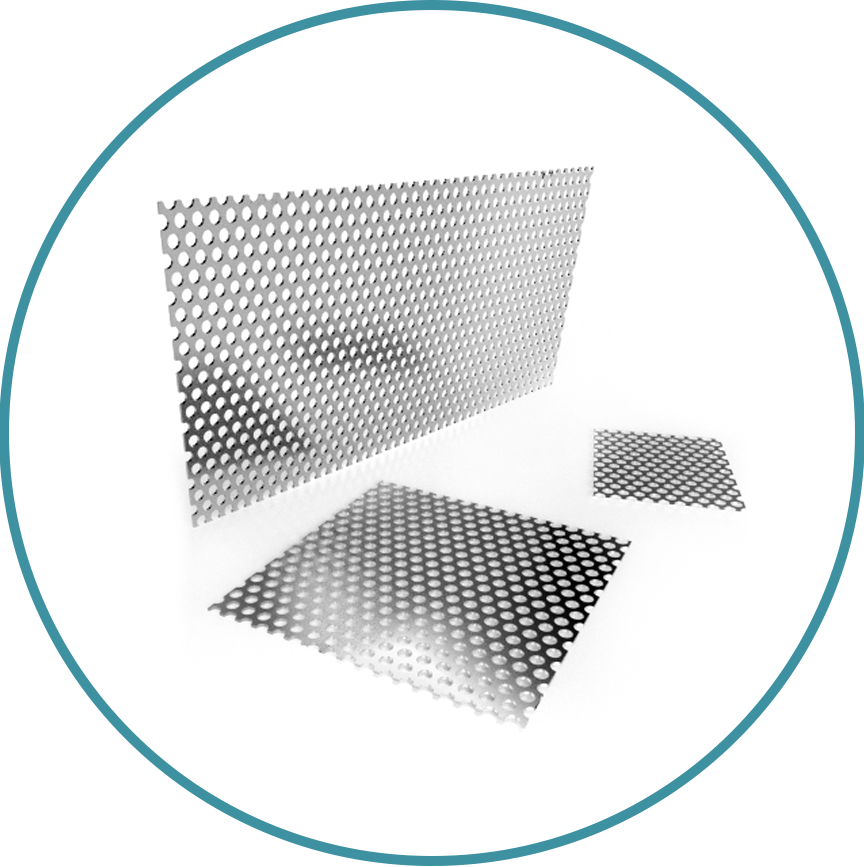

HPC Maxillofacial micro nets

HMS – Titanium Membranes

Titanium membranes for fixing and covering broken skulls, skull deficits. The nets are delivered in the requested size and flat form.
The membranes can be easily cut into shape and can be folded by hand pliers.
The system consists of : screw- maxillofacial bone screw in D1, 0 mm and D1,2 mm sizes. The screws can be made with cross recessed, torx or a hex of 1 mm of quadrilateral key apertures on request.
