COMPATIBLE – Implants and abutments from the known to the unknown

Compatibility

ADIN® • Alpha Bio® – NeO® – NICE® • ANKYLOS® • Anthogyr® – Anthofit® • ASTRA TECH® – EVOLUTION® • BEGO® – Semados® • BioHorizons® • Bio-Lok® • Biomet 3i® • Bioplant® • BIT® • IHDE® • BoneLevel® • Brånemark® • Bredent® – blueSKY® • CAMLOG® • CONELOG® • CORTEX® • CortiLog® • Cosmodent® • DenTi® • Denti Kone® Dentium® • DIO® – SM® – UF® • Dynamic® • FAIR TWO® • Ferenczi® • FRIALIT® • Fullplant® • ICX® • Implant Direct® • IMZ® • IQ® • iSy® • Kontact® • Legacy® • Medentika® • MEGAGEN® • MIS® – C1® – Seven® UNO® – V3® • Neodent®• Neoss® • Nobel Biocare® – ACTIVE® – Replace® – CC® • Oralplant® • Osstem® • PerioType® • Pitt-Easy® • Q-Implant® • REVOIS® • Sanatmetal® • SGS® – D® • SIC® • Sin Octa® • Straumann® • Tiolox® • TRI-Log® • Uniplant® • WaYland Vital® • XiVE® – O® • Zimmer® – P-I®

Our COMPATIBLE abutments are designed to fit perfectly with other systems and Instruments as well. There is a wide range of abutment topside selection, whose interface can be selected according to the desired system.

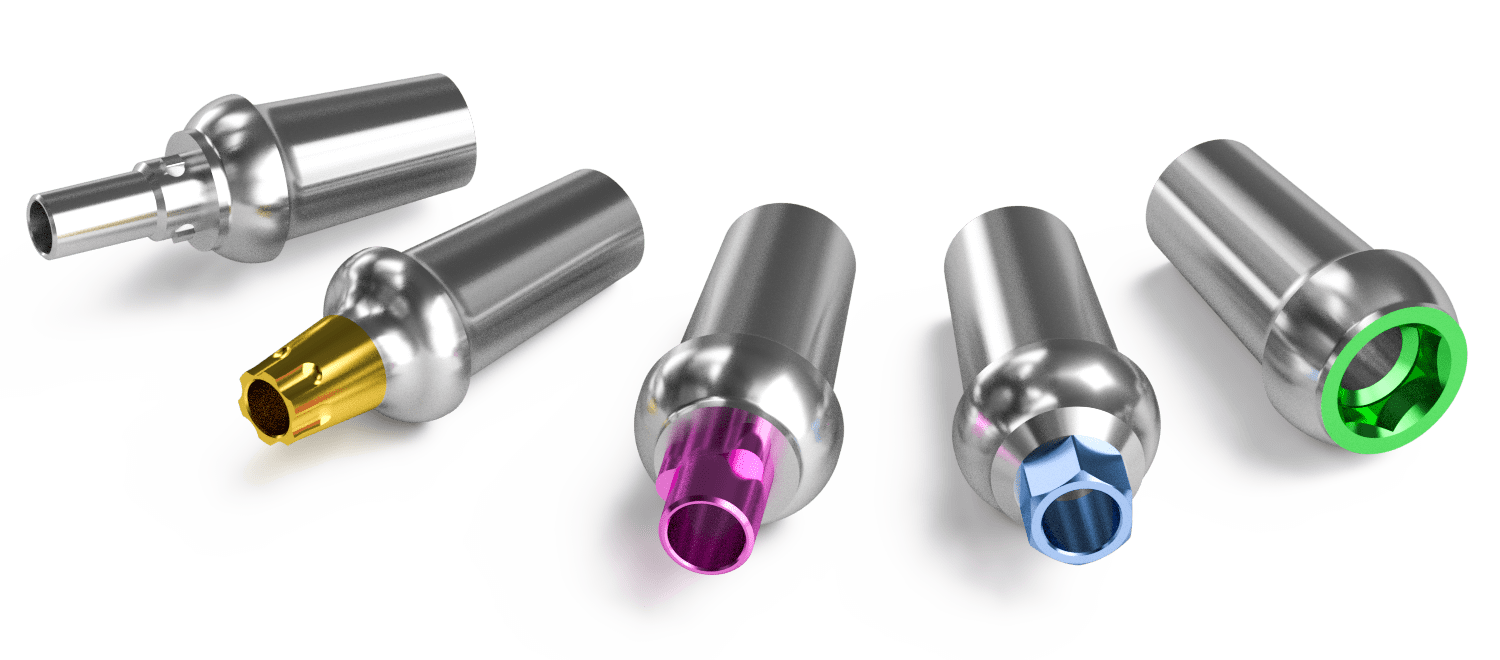

BIONIKA Compatible Implant Abutment System

Different sizes and length abutments in a wide range can be chosen for the BIONIKA implants. There are personalized solutions for every cases. There are nearly 50 types of geometries for plastic, zirconium, titanium and cobalt chromium-based toothworks. The implant heads can be founded for removable, screwed and glued toothworks in our supply, as well as implant-level casting heads, temporary heads, gum-forming heads, prosthetic and CAD-CAM elements are available for You at your disposal.

In all cases of implant abutments, alloyed, high strength Grade 5 titanium is applied according to the ISO 5832-4 ASTM F136 standard.

The titanium used according to the standard is provided with exceptional biocompatibility, this is why it is almost risk-free. The quality of the products is guaranteed by design, manufacturing and quality management according to the harmonized European Union laws. The BIONIKA Medline Orvostechinkai Kft. is operated according to the EN ISO 9001 and the EN ISO 13485 quality management system. Our products are provided with CE marks, which is certified by the TÜV Rheinland.

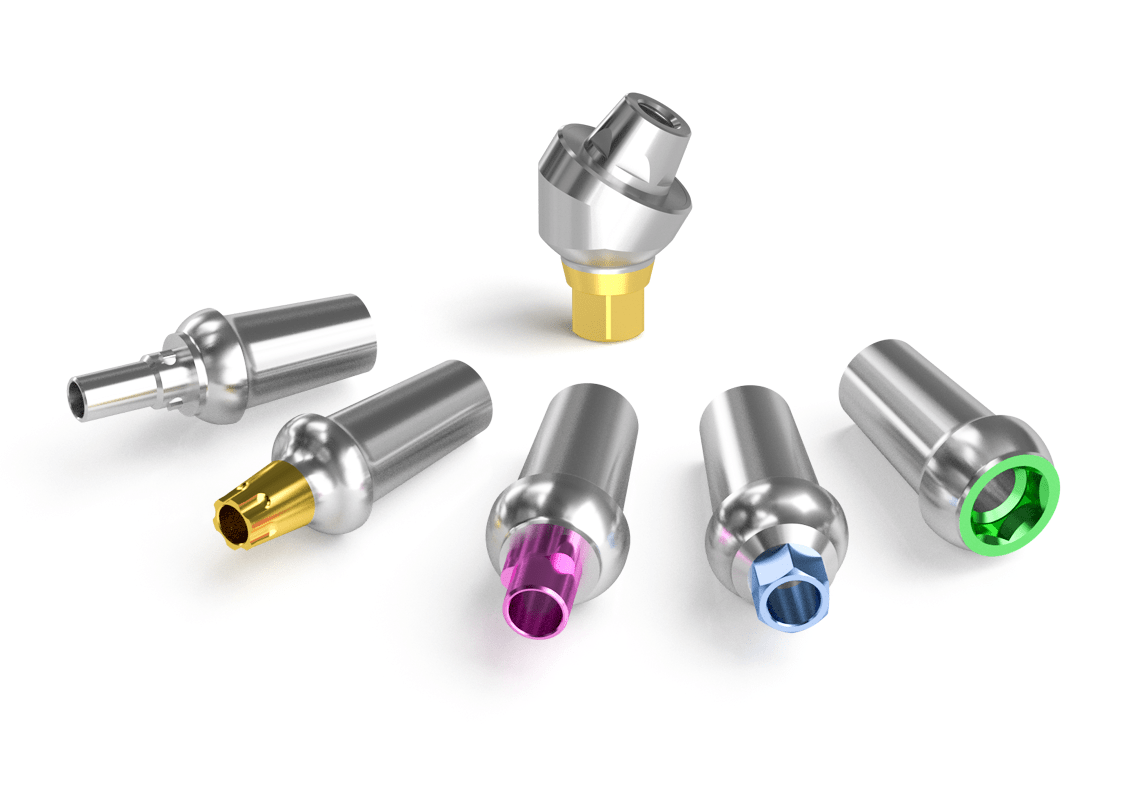

BIONIKA Abutments - Implant heads

Compatible AC

Compatibility: Zimmer-PI®

Hexagonal positioning. Micromotor-free conical connection. The fixing screw has a torx key aperture. The design of the implant head is not always the same, only compatible with the original design. Customized solutions can also be ordered. Our Compatible AC system is compatible with the following systems: NOBEL ACTIVE®, NOBEL CC®

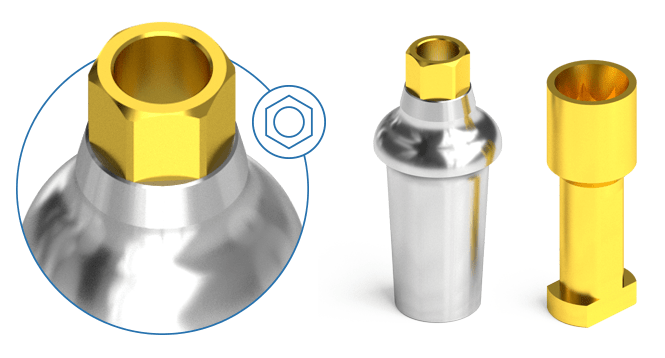

BIONIKA COMPATIBLE AC Implant System - Noble Active, Nobel CC - connection

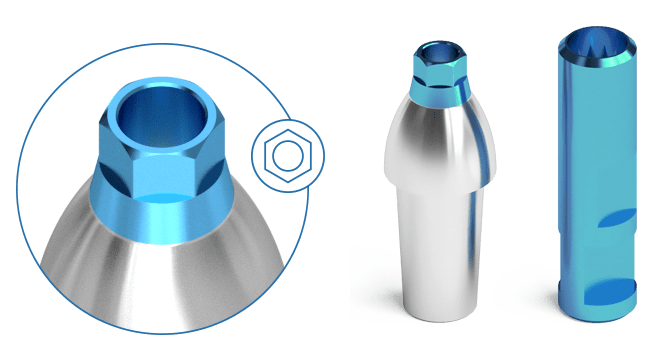

Compatible AS

Compatibility: Astra®

Hexagonal positioning. Micromotor-free conical connection. The 1,2 mm fixing screw has a hexagonal key aperture. The design of the implant head is not always the same, only compatible with the original design. Customized solutions can also be ordered.There is a wide range of abutment topside selection, whose interface can be selected according to the desired system. Our Compatible AS system is compatible with the following systems: Astra®

BIONIKA COMPATIBLE AS Implant System - Astra - connection

Compatible BL

Compatibility: Straumann, BoneLevel®

Four positioned ribbed rotation inhibition. Tube-in-tube and conical micromotor-free fixation. Every implant diameter has different sizes. Narrow, conical platform. The locking screw has a torx key aperture. The design of the implant head isn’t always the same, only compatible with the original design. Customized solutions can also be ordered. Our Compatible BL system is compatible with the following systems: Straumann – BoneLevel®

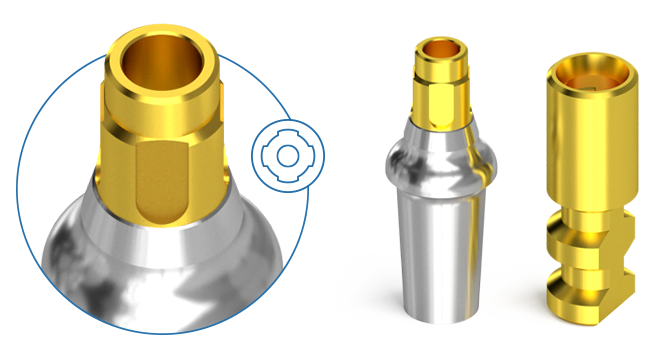

BIONIKA COMPATIBLE BL Implant System - Straumann BoneLevel - connection

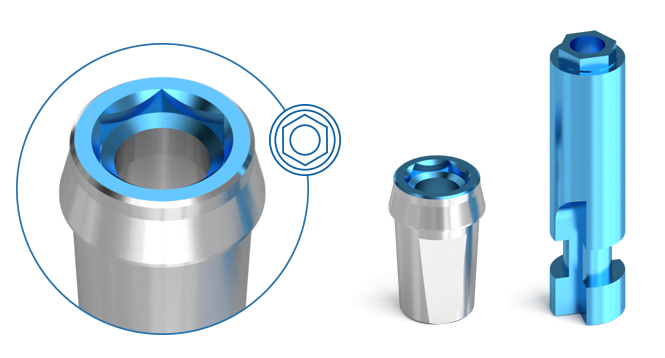

Compatible BR

Compatibility: Brånemark®

Outer hexagonal positioning. The 3,75 and 4,0 mm implant diameters have the same head sizes. Flat platform, perpendicular to the axial direction. The fixing screw has a torx key aperture. There is a wide range of abutment topside selection, whose interface can be selected according to the desired system. Our Compatible BR system is compatible with the following systems: Brånemark®

BIONIKA COMPATIBLE BR Implant System - Bronemark - connection

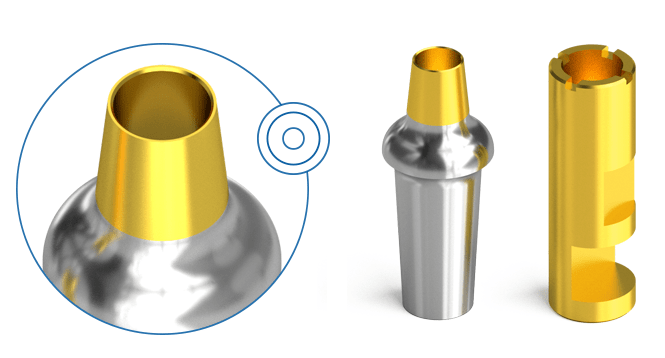

Compatible CA

Compatibility: Ankylos®

Self-closing, conical connection with positioning ribs. The connection is the same with every implant size. Customized solutions can be ordered as well. The locking screw has a 1 mm hexagonal key aperture. The shaping of the implant head is not always the same in every case, only compatible with the original construction. Our Compatible CX system is compatible with the following systems: Ankylos C/X®

BIONIKA COMPATIBLE CA Implant System - Ankylos - connection

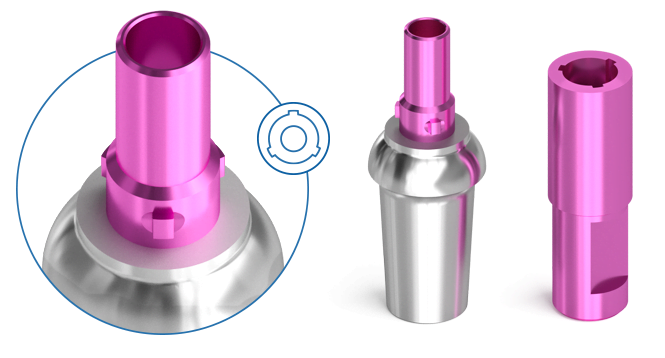

Compatible CL

Compatibility: CamLog®, Corti-Log®

Tube-in-tube connection, positioning with the help of three cam shapes. Every implant diameter has different sizes. Flat platform, perpendicular to the axial direction. The locking screw has a 1,27 mm hexagonal key aperture. The shaping of the implant head is not always the same in every case, only compatible with the original construction. Customized solutions can be ordered. Our Compatible CL system is compatible with the following systems: CAMLOG®, TRI-Log®, CortiLog.

BIONIKA COMPATIBLE CL Implant System - CamLog, Corti-log, Tri-Log - connection

Compatible cX

Compatibility: Ankylos®

Hexagonal positioning, mMicromotor-free , conical (90 degree) connection. The locking screw has a 1,2 mm and hexagonal key aperture. The shape of the implant head is not always the same in every case, only compatible with the original construction. Customized solutions can be ordered as well. Our Compatible TP system is compatible with the following systems: ICX Templant®

BIONIKA COMPATIBLE CX Implant System - Ankylos

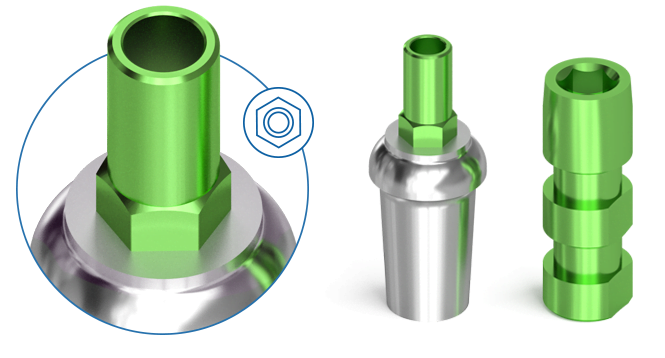

Compatible DT

Compatibility: DenTi®

Tube-in-tube connection, hexagonal positioning. Flat platform, perpendicular to the axial direction. The locking screw has a 1,2 mm hexagonal key aperture. The shaping of the implant head is not always the same in every case, only compatible with the original construction. Customized solutions can be ordered.Our Compatible DT system is compatible with the following systems: DenTi®

BIONIKA COMPATIBLE DT Implant System- Denti - connection

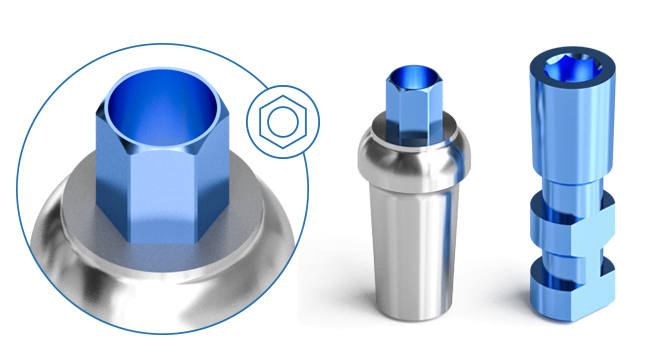

Compatible PE

Compatibility: Pitt-Easy®, Bioplant®

Hexagonal positioning connection.  The diameter in the 3,25 and 3,75 mm sizes is the same, bigger hexagonal hexagon must be used in the case of smaller ,4,10-4,90-6,50 sizes. Flat platform, perpendicular to the axial direction. The locking screw has a 1,67 mm key aperture. The shape of the implant head is not always the same in every case, only compatible with the original construction. Customized solutions can be ordered as well. Our Compatible PE system is compatible with the following systems: Pitt-Easy®, Bioplant

BIONIKA COMPATIBLE BP Implant System - Pitt Easy, Bioplant - connection

Compatible RP

Compatibility: Replace®

Tube-in-tube connection with three positioning ribs. Every implant diameter has a different sizes. Flat platform, perpendicular to the axial direction. The locking screw has a tory key aperture. The shape of the implant head is not always the same in very case, only compatible with the original construction. Customized solutions can be ordered as well. Our Compatible RP system is compatible with the following systems: Nobel Replace®

BIONIKA COMPATIBLE RP Implant System - Replace - connection

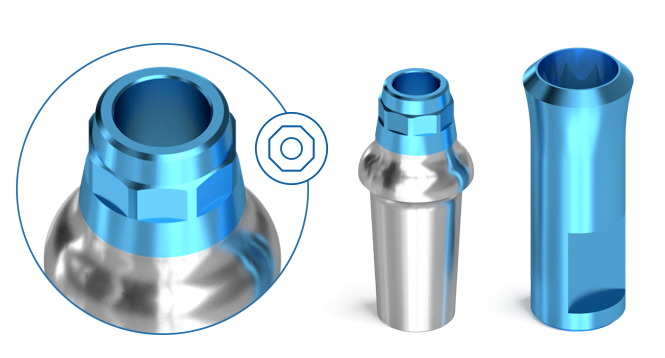

Compatible ST

Compatibility: Straumann® sinOcta®

Octagonal positioning connection. Self-closing,conical fixation. The platform is 90 degree cone angle. The locking screw has a torx key aperture. The shape of the implant head is not always the same in every case, only compatible with the original costruction. Customized solutions can be ordered as well. Our Compatible ST system is compatible with the following systems: Straumann® synOcta®

BIONIKA COMPATIBLE ST Implant System- Straumann, Sin-octa - conenction

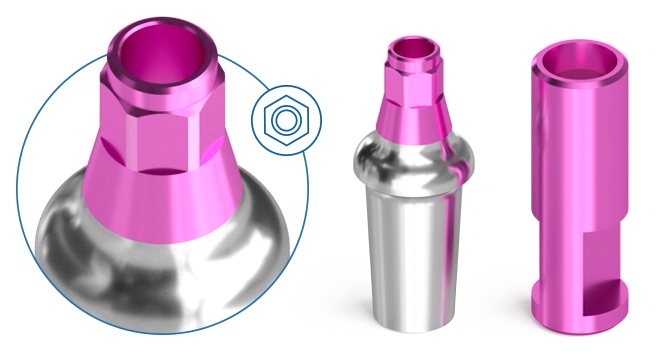

Compatible TP

Compatibility: ICX Templant®

Hatszögletű pozícionálás, mikromozgás mentes kúpos (90°) kapcsolat. A rögzítő csavar 1,2 mm-es hatszög kulcsnyílású. Az implantátumfej kialakítása nem minden esetben egyezik meg, csak kompatibilis az eredeti konstrukcióval. Compatible TP rendszerünk a következő rendszerekkel kompatibilis: ICX Templant®

BIONIKA COMPATIBLE TP Implant System- ICX Templant - connection

Our additional 60 COMPATIBLE families

COMPATIBLE 3I

Compatibility: Biomet 3i®

COMPATIBLE AB

Compatibility: Alpha Bio®,
Cortex®

COMPATIBLE ADIN

Compatibility: Adin®

COMPATIBLE AE

Compatibility: ASTRA TECH® – EVOLUTION®

COMPATIBLE AG

Compatibility: Anthogyr®

COMPATIBLE AT

Compatibility: Anthogyr® –
Anthofit®

COMPATIBLE BB

Compatibility: Brendent – blueSKY®

COMPATIBLE BH

Compatibility: Sanatmetal®

COMPATIBLE BLK

Compatibility: BioLok®

COMPATIBLE BT

Compatibility: BIT®, IHDE®

COMPATIBLE C1

Compatibility: MIS-C1®

COMPATIBLE CCL

Compatibility: CONELOG®

COMPATIBLE CD

Compatibility: Cosmodent®

COMPATIBLE CT

Compatibility: CORTEX®

COMPATIBLE DI SM

Kompatibilitás: DIO-SM®

COMPATIBLE DI UF

Kompatibilitás: DIO-UF® – DENTIUM®

COMPATIBLE DK

Kompatibilitás: DENTI KONE®

COMPATIBLE DM

Kompatibilitás: Dentium®

COMPATIBLE DY

Kompatibilitás: Dynamic®

COMPATIBLE FA

Kompatibilitás: FAIR TWO®

COMPATIBLE FR

Kompatibilitás: XiVE® FRIADENT®

COMPATIBLE FRC

Kompatibilitás: Ferenczy®

COMPATIBLE ID

Kompatibilitás: Implant Direct®

COMPATIBLE IL

Kompatibilitás: Intra-Lock®

COMPATIBLE IMZ

Kompatibilitás: IMZ®

COMPATIBLE IQ

Kompatibilitás: IQ®,
MIS®

COMPATIBLE ISY

Kompatibilitás: CAMLOG – iSy®

COMPATIBLE KT

Kompatibilitás: Biotech® – KONTAKT®

COMPATIBLE LG

Kompatibilitás: Implant Direct – Legacy®

COMPATIBLE MED

Kompatibilitás: Medentika®

COMPATIBLE MG

Kompatibilitás: MEGAGEN®

COMPATIBLE MS

Kompatibilitás: MIS® – SEVEN®

COMPATIBLE NA

Kompatibilitás: Nobel – Active®, Nobel – CC®

COMPATIBLE NB

Kompatibilitás: Medentika®

COMPATIBLE ND

Kompatibilitás: Neodent®

COMPATIBLE NI

Kompatibilitás:  Alpha Bio® – NeO® – NICE®

COMPATIBLE NO

Kompatibilitás: Neoss®

COMPATIBLE OR

Kompatibilitás: Oralplant®

COMPATIBLE OS

Kompatibilitás: Osstem®

COMPATIBLE OS 1F

Kompatibilitás: Osstem®

COMPATIBLE PT

Kompatibilitás: PerioType®

COMPATIBLE Q

Kompatibilitás: Q-Implant®

COMPATIBLE RV

Kompatibilitás: Revois®

COMPATIBLE SAM

Kompatibilitás: Sanatmetal®

COMPATIBLE SD

Kompatibilitás: BEGO® – Semados®

COMPATIBLE SG

Kompatibilitás: SGS®

COMPATIBLE SGD

Kompatibilitás: SGS – D®

COMPATIBLE SI

Kompatibilitás: SIC®

COMPATIBLE ST 1F

Kompatibilitás: Straumann®

COMPATIBLE TLX

Kompatibilitás: Tiolox®

COMPATIBLE TLX

Kompatibilitás: Tiolox®

COMPATIBLE TPL 1F

Kompatibilitás: ICX – Templant®

COMPATIBLE UNO

Kompatibilitás: MIS – UNO®

COMPATIBLE UP

Kompatibilitás: Uniplant®

COMPATIBLE V3

Kompatibilitás: MIS-V3®

COMPATIBLE WL

Kompatibilitás: Wayland Vital®

COMPATIBLE XO

Kompatibilitás: XiVE-O®

COMPATIBLE ZM

Kompatibilitás: Zimmer®

COMPATIBLE ZP

Kompatibilitás: Zimmer-PI®

COMPATIBLE ANONYM

Egyedi fejek, ismeretlen implantátumokhoz
