User- friendly compatibility

Over the last 20 years, we have been involved in the development of more than 30 implant systems in cooperation with various medical groups at international and domestic levels, many of which are currently being produced. During development, it was a constant problem that early implants were not standard systems, were difficult for prosthetists to navigate among them. Diversity has raised many technical problems not only in implanting, but also in making a toothwork. These have increased the costs on the production side, which were also felt in the price of implants.

We worked together with our experts to explain the risks arising from differences that we encountered day by day. For example, perhaps we should not exaggerate, the problem is that the geometry and size of key aperture of the through-bolts with multiple implants are very diverse in the most common systems. If you take a look only at the hex key, the most common sizes are 1mm, 1.2mm, 1.25mm, 1.27mm, 1.3mm, 1.67mm … That is why we have sought to standardize our company’s through-bolts, hexagonal openings and drive keys. Many examples could be mentioned in which cases 20 to 30% cheaper production due to standardization.

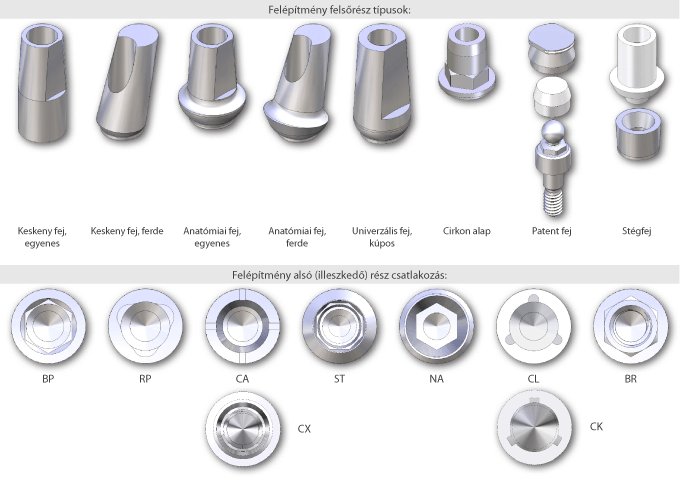

Focusing on compatibility- The primary, basic elements of the Compatible product family

This is reflected in our prices when compared to other implant systems. With the decline in diversity, the number of pieces produced during one production cycle has increased, which has led to the improvement of quality. We have encountered many times with a problem that could not be solved with the classic systems, and unique solutions were needed. „Large” systems made this flexibility difficult or impossible for their users. This also contributed to the development of our COMPATIBLE system. So this duality, compatibility, and the need for unique, customized solutions that are becoming increasingly common, have created the BIONIKA COMPATIBLE abutment family.

flexible implant
  • Demands have shown that almost every system requires a narrow abutment in a straight and angled version, which is mostly used for temporary toothworks.
  • The development of an aesthetic demand has brought the anatomical body shape with its straight and angled design.
  • In 70% of the cases the universal implant heads are a satisfactory solution. That is why it was ended up being the most popular in the market.
  • In addition to this, the usage of our different ball-headed solutions (OT-CAP, O-ring) is increasingly being used for removable tooth replacements. Development has brought more and more complicated solutions into the industry, thus the castable bridges are becoming increasingly popular made by dental technicians. The different designs of pier heads with burnable plastic element provide a great deal of help for this.
  • The swiftly appearing zircon technique brought the need for zircon basics, which can be assured in a wide range of systems.
  • We are able to offer types of shapes that are more suitable for other demands , which enables the corrections of large angular deviations such as the BIONIKA Trapeze reverse cone head and the pre-roughed BIONIKA Delta head, which can also provide a 45 ° correction.
  • In addition to this, the narrow , wide and sewable healing caps and our locator abutments belong to our compatible products.
  • Platform Switching (PS) versions are available for every types of head considering the implant platform types.

There are as many systems as instrument kits on the market. This evantuates significant costs for dentists and traders. In addition to this, mix-ups may occur during surgical stress. Many of our partners have asked us to adapt our systems to their existing general kit of instruments, with the minimum changes that are absolutely necessary to apply our implants. This is how the BIONIKA UNIVERSAL instrument kit was established, which is suitable for implantation of all BIONIKA systems, and with the help of it, many other compatible systems can be implanted. In addition to the abutments, we also try to satisfy many types of implant development needs, which best meet the personal expectations of an experienced implantologist and, in a customized manner, the patient’s abilities.
